Avanos Medical 220576 - ambIT PreSet v1.5 Pump

Avanos Medical 220576 - ambIT PreSet v1.5 Pump

ambIT PreSet v1.5 Pump

The ambIT PreSet v1.5 pump is designed for the ambulatory infusion of fluids and medications in home and healthcare facilities. The pump has simple controls that are easily operated by both caregivers and patients. The operator position with respect to the device is considered arms length (no more than 0.5 meters direct view).

The ambIT PreSet v1.5 pump contains up to five programming options on the back of the pump and in the programming steps.

Indications for Use

The ambIT PreSet v1.5 pump is intended for use by surgeons and anesthesiologists for the peri-operative and post-operative infusion of local anesthetics and narcotics for pain management and regional anesthesia. Routes of administration include intravenous, subcutaneous, intramuscular, perineural and epidural. The ambIT PreSet v1.5 pump is also intended to significantly decrease narcotic use and pain when used to deliver local anesthetics to surgical wound sites or in close proximity to nerves when compared with narcotic only pain management.

Infusion Patterns

The ambIT PreSet v1.5 pump allows for the following three types of infusion patterns: (1) basal flow rate only, (2) bolus only, and (3) basal flow rate and bolus. The pump simplifies pump programming by providing the clinician with the option to choose from up to four (4) preprogrammed infusion protocols (PRO1 - PRO4), or to program infusion parameters individually (PRO5).

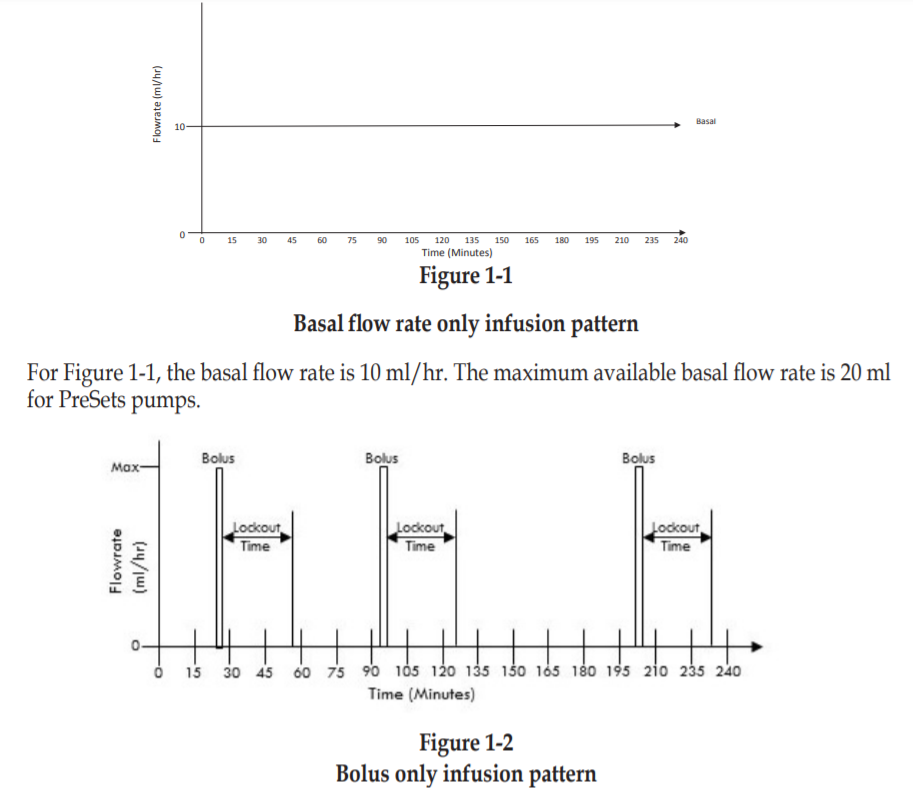

The different parameters of an infusion interact with each other to create an infusion pattern. Examples of the infusion patterns are provided graphically in Figures 1-1 through 1-3 that follow. The flow rates, volumes and lockout times discussed in the graphs are examples only.
