Moog Medical 340-4111 - Microbore Tubing with 150ml Bag, Slide Clamp, Luer, Separate Combi-Lock Cap, Non-DEHP PVC, No Rubber Latex, 20/CS
Administration Sets for Oncology Use
CURLIN Administration Sets feature a unique anti-free flow device that prevents over-infusion and allows intentional priming by gravity to reduce set-up time.
The CURLIN 6000 Pump has two administration sets with pre-attached 150mL bags to help ensure closed-system oncology infusions

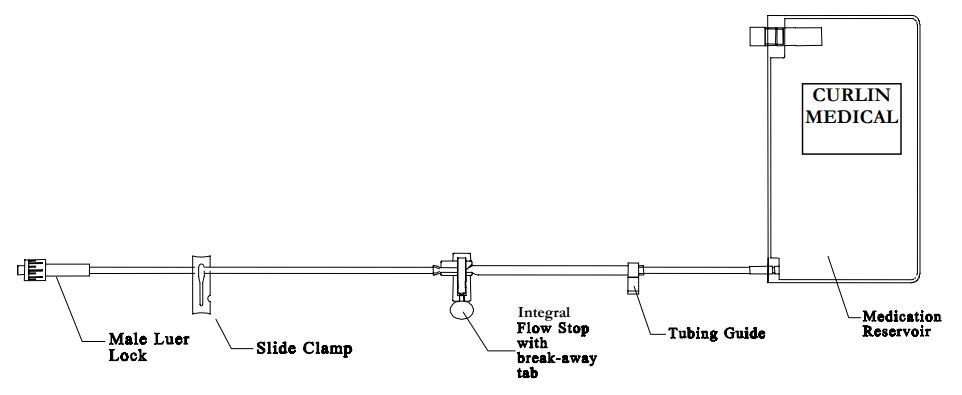

Disposable Administration Set Illustrations and Features
Note:
An important feature of the Curlin Medical administration set is the unique design of the set-based "Integral Flow-Stop." When the set is new, the "Integral Flow-Stop" has a breakaway tab that keeps the Integral Flow-Stop open and allows the tubing to be gravity primed. When you are ready to load the administration set into the pump, remove this tab, and the "Integral Flow-Stop" will automatically clamp the tubing. The Curlin Medical "Integral Flow-Stop" prevents inadvertent flow of medication to the patient whenever the door of the pump is opened because the "Integral Flow-Stop" automatically reacts to clamp the tubing. The "Integral FlowStop" can, however, be opened after the tab is broken away by intentionally squeezing down on the movable spring action section of the "Integral Flow-Stop."
Preparing Medication for Infusion/Changing IV Bags
 |  |
Choosing and installing the Curlin Medical Administration Set
A number of distinctively designed Curlin Medical administration sets are available to deliver each prescription accurately. (See Curlin Medical "Product Catalog".) Each set is designed to meet the requirements of specific therapies, therefore, if a basic bag-spike set or a set with a medication reservoir is needed, with or without air eliminating filters, etc., there are several configurations from which to choose. Follow the healthcare providers protocols for preparing the medication and the administration set before loading the set into the pump, remembering the following basic rules:
- Examine the packaging and the administration set before use to assure the package integrity. Do not use the set if the protective caps are dislodged or if the package integrity is breached, as fluid path sterility cannot be guaranteed under those circumstances.
- Notice that there is an instructional insert included in the administration set package. This insert includes written and graphic instructions for proper installation of the administration set into the pump. It also lists the fill volume of the administration set. Allow for the amount of the fill volume when determining the final IV bag volume.
